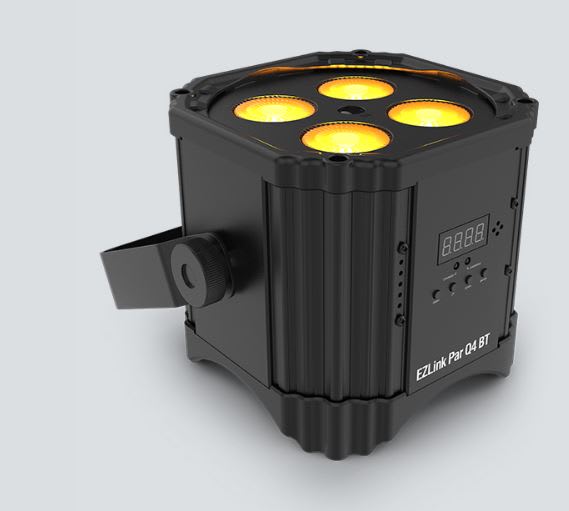

The Chauvet DJ EZLink Par Q4BT is the smaller sibling of our EZLink Par Q6BT ILS uplighter: 4 quad-colour (RGBA) LED chips instead of 6, in a smaller and lighter housing. It still has the amber channel that gives you proper warm hues and natural skin tones instead of the slightly synthetic look plain RGB gives, which is why these get hired for weddings, entrances, awards dinners and corporate room theming.
Battery-powered and Bluetooth-controlled, the Q4BT runs up to 8 hours on a charge with everything on, or up to 20 hours on a single colour - plenty for a full evening. Recharge is 7 hours, and the fittings come out charged.
Control is the BTAir app on your smartphone or tablet over Bluetooth 4.2 (150ft / 45.7m range), with no DMX desk needed. For larger shows take DMX (4 or 8 channels, 3-pin XLR) or sync multiple fittings with the IRC-6 handheld remote. Sound-activated and automated programs are also built in for instant effects.
This is the uplighter to pick when you have a tight gear budget, a smaller room, or need to physically hide the fitting behind furniture or drapes - the 145mm cube is genuinely small. The 34-degree field angle is wider than the Q6BT's 30 degrees, so each fitting throws a wider wash - good for uplighting walls rather than pin-spotting columns.
Add the EZLink Par Q4BT from the extras list when you get a quote on any other item, or call the office on 0114 345 0135 and we will talk through which uplighter fits your room and budget.
Specifications
- Light source: 4 x quad-colour RGBA LEDs, 3W each (952 mA), 50,000-hour life expectancy
- Colour mixing: RGBA - red, green, blue and amber for warm hues and natural skin tones
- Illuminance: 1,306 lux @ 2m
- Beam angle: 15°
- Field angle: 34° (wider spread than the Q6BT)
- Strobe rate: 0 to 25 Hz
- PWM frequency: 1.59kHz
- Battery runtime: up to 8 hours (all on), up to 20 hours (single colour)
- Recharge time: 7 hours
- Power consumption: 24W, 0.2A @ 230V, 50Hz
- Input voltage: 100-240V AC, 50/60Hz (auto-ranging)
- Power linking: up to 50 units @ 230V (with power cable, not wireless)
- DMX channels: 4 or 8 selectable
- DMX connectors: 3-pin XLR
- Wireless control: Bluetooth 4.2, max unobstructed distance 150 ft (45.7m), 2.4 GHz operating frequency
- Optional controllers: IRC-6 handheld remote, BTAir smartphone app (free)
- Built-in auto modes: sound-activated programs and automated programs (no controller needed)
- Transport: best fits the CHS-40 VIP Gear Bag (sold separately by Chauvet DJ)
- Weight: 1.3kg
- Size: 145 x 145 x 143mm (5.7 x 5.7 x 5.6 in)
- Approvals: CE, FCC
Practical details
- Price: £17.50 excluding VAT (£21.00 including VAT) per fixture.
- Charged on delivery: batteries come fully charged for up to 8 hours of all-on runtime.
- Control setup: we pre-pair the fixtures to a single Bluetooth group so the BTAir app controls them together. For DMX control, hire a lighting desk.
- Minimum spend: £50 for any delivered order plus delivery cost. Collection from our Rotherham warehouse is available instead, subject to a deposit and photo ID.
