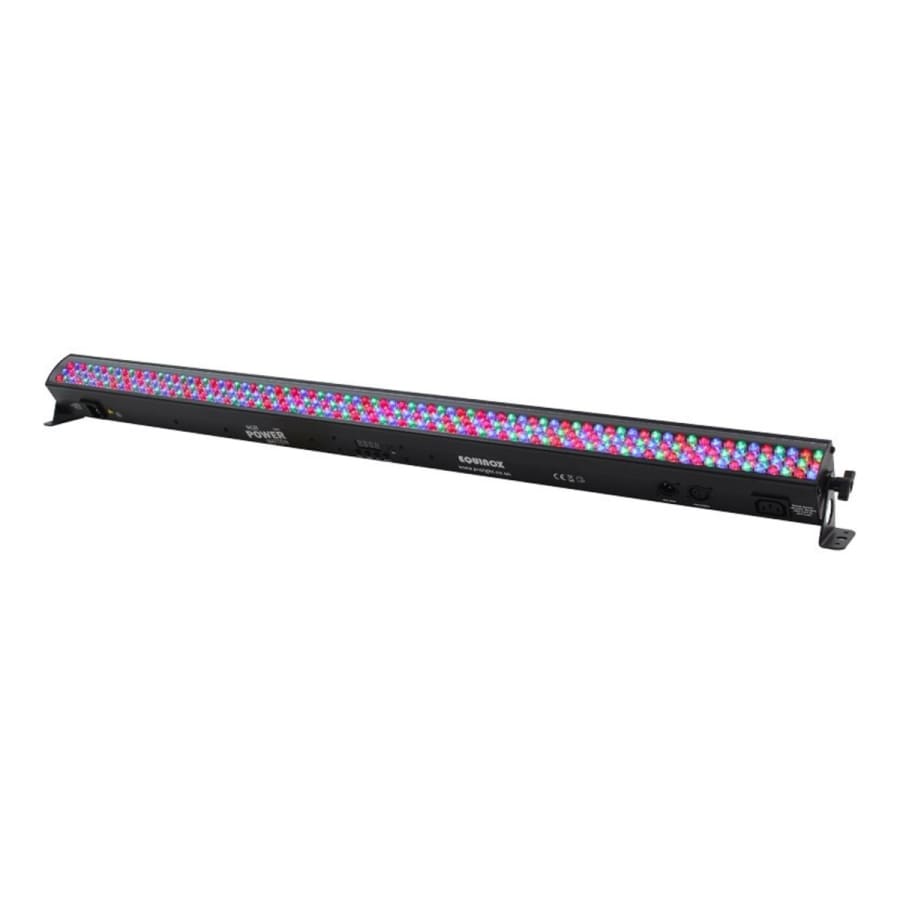

The Equinox RGB Power Batten is a metre-long colour bar packing 240 RGB LEDs split into 8 individually controllable segments. Point one up a wall for a soft colour wash, run a row along a stage edge for chase effects, or let the sound-active mode do the work and the lights move and change in time with the music. When we supply them alongside one of our sound systems we sync the two, which does a lot for a dance floor - there is a video on this page showing the result.
Onboard features include full RGB colour mixing to create soft washes from a rich palette, several chase programs selectable from the control panel along with brightness and speed, 0-100% dimming and variable strobe. If you are running a proper lighting desk they take DMX too, with 2, 3, 4, 7, 14 or 26 selectable channels depending on how much control you want over the segments.
For a run of battens along a wall, power and DMX daisy-chain from unit to unit via IEC and 3-pin XLR through-connectors, so one feed at the end of the row keeps the whole set going. Master/slave mode keeps a set of them changing together without a lighting desk - handy when there is no tech on the job. The bracket allows rigging on stands or truss, or floor standing, and the unit is convection cooled with no fan noise.
These sit in our PA and Music Section and go out with everything from village hall parties to corporate stages. Pair them with our Kam Disco Effect Light for laser patterns alongside the colour wash, or our Cabaret Colours Effect Light for a higher-output halogen alternative. For full DJ and sound support, see our Large PA Logic System and DJ with PA Equipment 4K rig.
Hit the green Get A Quote button to add battens to your booking and we will come back to you the same day. The £30 price is per batten, and the effect really comes alive with two or more linked together.
Features
- 240 x 10mm RGB LEDs (R: 96, G: 72, B: 72) divided into 8 segments
- Full colour mixing to create soft washes from a rich colour palette
- Several chase programs, selectable via the control panel with brightness and speed controls
- Sound-active mode reacts to the music - can be synced with our PA systems
- Auto and master/slave modes for standalone operation without a lighting desk
- 0-100% dimming and variable strobe
- DMX channels: 2/3/4/7/14 or 26 selectable, depending on the level of segment control needed
- Bracket allows for multiple rigging or floor standing applications
- 4 push-button menu with LED display
- IEC power input/output for daisy-chaining power
- 3-pin XLR input/output for daisy-chaining DMX
- Convection cooled - no fan noise
Specification
- Luminaire type: Equinox RGB Power Batten (EQLED032)
- LEDs: 240 x 10mm RGB (R: 96, G: 72, B: 72) in 8 segments
- Beam angle: 30°
- Output: 741 Lux @ 2m
- Power consumption: 30W
- Power supply: 100-240V, 50/60Hz
- Fuse: T1A 250V
- Dimensions: 91 x 1048 x 67mm (approximately 1 metre bar length)
- Weight: 1.8kg
- Cooling: convection (no fan)
Practical Details
- Price: £30 excluding VAT (£36.00 including VAT) per batten.
- Power: 100-240V, 50/60Hz, 30W draw per unit. Daisy-chainable via IEC through-connectors so a run of battens needs only one wall feed.
- Surfaces: the page suitability matrix lists indoor and outdoor use on every surface. Note that the unit has no formal IP weatherproof rating, so for permanent outdoor exposure we would suggest our 150W LED Floodlight or Festoon Lighting instead.
- Setup: delivery, rigging and collection included. We position and angle each batten to your venue layout, and can sync them to your sound system.
- Minimum spend: £50 for any delivered order plus delivery cost. Collection from our Rotherham warehouse is available instead, subject to a deposit and photo ID.
Suitable For
| Indoors on Artificial Grass |  |
| Indoors on Hard Surface | |
| Outdoors on Concrete | |
| Outdoors on Grass | |
| Outdoors on Grass / Hard Surface Mix | |
| Outdoors on Hard Surface | |
| Outdoors on Wood Chip | |
