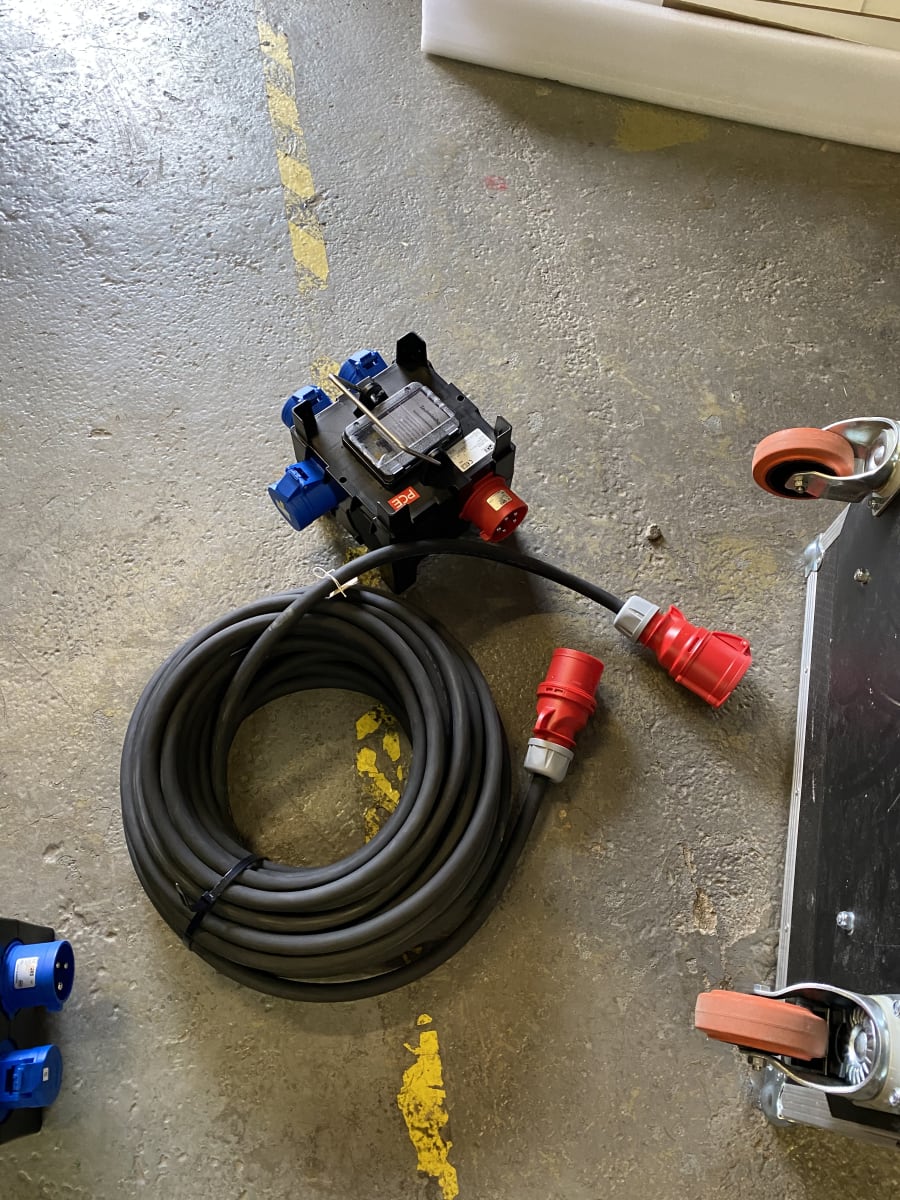

Most of the trade calls these boxes distros, and this is the three-phase one. Take a 32A 415V feed off one of our larger diesel generators or a venue three-phase supply, plug in the red 5-pin inlet, and you get three separate 32A 230V outputs, each one protected by its own 30mA RCBO.
That setup earns its keep when you're running serious kit. Spread a PA rig, lighting truss and catering across the three ways instead of hanging everything off one circuit, and if a fault trips one way the other two stay live. Fully loaded, the unit carries up to roughly 22kVA across the three phases, around 7kW down each output.
The internals are built by PCE in Austria on their IMST chassis, the same gear sound and lighting crews use across Europe. Shock-resistant polyamide case, steel folding carry handle, stackable so units store tidily, and an IP44 splashproof rating with a clear cover over the breakers, so running it outdoors in British weather is normal work. At 2.7kg one person can carry it from van to position.
We've been wiring temporary power into events from our 25,000 sq ft warehouse near the M1 for over 25 years, serving Doncaster, Barnsley, Worksop and Chesterfield week in week out, with nationwide delivery for bigger builds. Everything here is our own stock, not sub-hired, backed by £5 million public liability cover.
Hit the green button to add this distro to your quote and we'll get back to you the same day.
Specification
- Input: 32A 240/415V~50/60Hz 5-Pin 3P+N+E IP44 inlet
- Outputs: 3 x 32A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 32A 30mA 2P RCBO
- Dimensions: 196 x 260 x 300mm, weight 2.7kg
- Splashproof polyamide housing, stackable, clear breaker window
Hire details
- From £25 per day plus VAT, with overnight hire an extra £25
- This is the unit supplied whenever you hire our large generators with multi-outlet distribution
- Up to 30m of cabling between your supply and this distro for £20 extra
- Risk assessments and method statements can be emailed to you or your venue before the event
- Runs indoors or out on grass, concrete, hard standing, artificial grass or wood chip
Pairs well with
Suitable For
| Indoors on Artificial Grass |  |
| Indoors on Hard Surface | |
| Outdoors on Concrete | |
| Outdoors on Grass | |
| Outdoors on Grass / Hard Surface Mix | |
| Outdoors on Hard Surface | |
| Outdoors on Wood Chip | |
