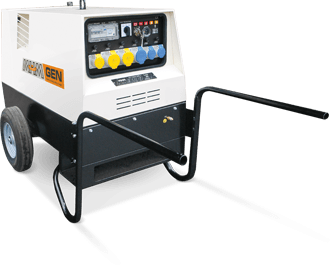

For powering heavy duty site tools, these diesel generators are equipped with 240V and 110V sockets.

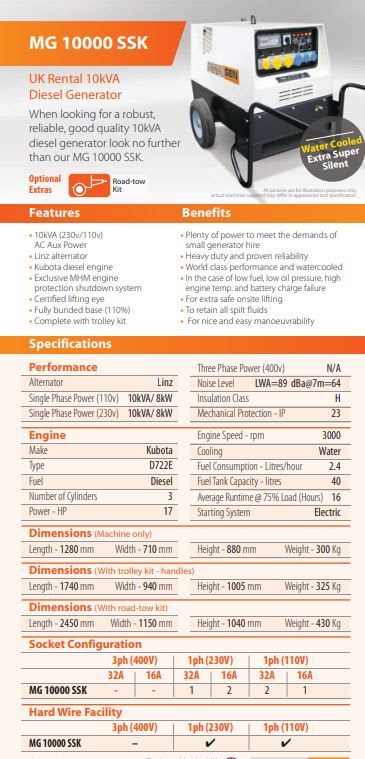

Performance Alternator Linz Single Phase Power (110v) 10kVA/ 8kW Single Phase Power (230v) 10kVA/ 8kW Three Phase Power (400v) N/A Noise Level LWA=89 dBa@7m=64 Insulation Class H Mechanical Protection - IP 23 Engine Make Kubota Type D722E Fuel Diesel Number of Cylinders 3 Power - HP 17 Engine Speed - rpm 3000 Cooling Water Fuel Consumption - Litres/hour 2.4 Fuel Tank Capacity - litres 40 Average Runtime @ 75% Load (Hours) 16 Starting System Electric Dimensions (Machine only) Length - 1280 mm Width - 710 mm Height - 880 mm Weight - 300 Kg Socket Configuration 3ph (400V) 1ph (230V) 1ph (110V) 32A 16A 32A 16A 32A 16A MG 10000 SSK - - 1 2 2 1 • 10kVA (230v/110v) AC Aux Power • Linz alternator • Kubota diesel engine • Exclusive MHM engine protection shutdown system • Certified lifting eye • Fully bunded base (110%) • Complete with trolley kit Features • Plenty of power to meet the demands of small generator hire • Heavy duty and proven reliability • World class performance and watercooled • In the case of low fuel, low oil pressure, high engine temp. and battery charge failure • For extra safe onsite lifting • To retain all spilt fluids • For nice and easy manoeuvrability Benefits Length - 1740 mm Width - 940 mm Height - 1005 mm Weight - 325 Kg Road-tow Kit Optional Extras Water Cooled Extra Super Silent Hard Wire Facility 3ph (400V) 1ph (230V) 1ph (110V) MG 10000 SSK – 4 4

Suitable For

Outdoors on Grass
Outdoors on Hard Surface

Not Suitable For

Indoors on Artificial Grass
Indoors on Hard Surface
