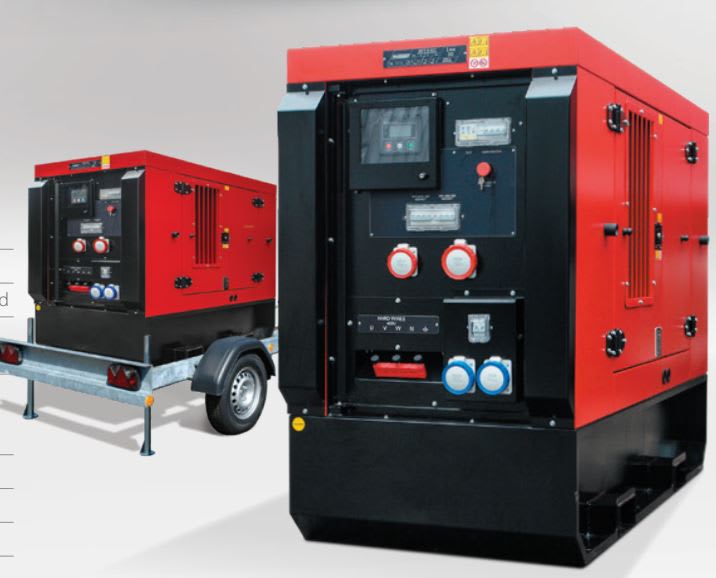

The 30 kVA diesel generator is the big unit in our generator range. It's a road-tow, three-phase genset with a Perkins diesel engine, sized for running a whole site off one machine: fairground rides, large assault courses, staging with full PA, catering, gazebo heaters and festoon lighting.
It's a quiet one for its size, rated 64 dBA, and the 120 litre bunded long-range fuel tank runs up to 22 hours at 75% load, so a full event day goes by without anyone nipping out for fuel. It runs on diesel, and the supply is organised by us and included in the price of the hire - every generator leaves us with a full tank, and we can supply extra fuel for longer hires.
Where does it go? Outdoor field events mostly - funfairs, rodeo days, school galas, weddings in fields around Sheffield, Doncaster and Chesterfield, plus building sites and emergency back-up wherever the mains won't reach. It's outdoor kit: it sits on grass or hard standing rather than indoors, and it turns up on its own road-tow trailer, so no lifting gear needed on your site.
Our own team delivers it, positions it, runs the checks and starts it up, then comes back to collect it when you're done. It's kit we own and maintain in-house, backed by £5 million public liability insurance, with risk assessments sent ahead of the event. One bit of small print: hired on its own, this generator needs hirers' plant insurance; booked as part of a bigger DB order, it doesn't.
We always book the activities to be staffed and powered, which leaves us to concentrate on other aspects on the day, said Pinx Salon, who have used DB for their annual charity fun day since 2013.
Areas We Cover
Generator hire for marquee events across South Yorkshire: see the Sheffield and Doncaster pages for drive times and local booking evidence.
Hit the green button to add the 30 kVA generator to your quote and we'll get back to you the same day. If you're not sure what size you need, tell us what's running and we'll work it out with you.
Specs
- Power: 30 kVA (about 24 kW), 400V three-phase and 230V single-phase
- Sockets: 3ph 400V - 1 x 32A and 1 x 16A; 1ph 230V - 2 x 32A
- Engine: Perkins diesel, auto voltage regulation to within +/- 1.5%
- Noise: rated 64 dBA
- Fuel: 120 litre bunded long-range tank, up to 22 hours running at 75% load
- Safety: overload protection on every socket, ELCB on the 400V and 230V outputs, hard-wire connection facility
- Weight: 1,180 kg dry, 1,300 kg with a full tank
- Size: around 13ft x 6ft footprint, 5.5ft high, on its own road-tow trailer
- The manufacturer's spec sheet lists the unit as HVO fuel approved
Hire details
- From £375 plus VAT; overnight hire an extra £25
- Delivery and collection charged at £1 per mile each way
- Diesel organised by us and included in the price of the hire; extra fuel available for longer hires
- Same day, next day or rapid response delivery depending on the job
- Discounts for longer term hire, and hires can be extended at short notice
- Available to hire or buy
- Hired on its own, this unit needs hirers' plant insurance; booked as part of a bigger DB order, it doesn't
- A minimum spend may apply depending on your event location
Sizing and extras
As a rule of thumb, 30 kVA is around 43 amps per phase on the 400V three-phase side. If that's more than the event needs, the 20 kVA and 10 kVA generators step down from here, and the Instagrid battery unit covers jobs where fumes or noise are out. To spread the power around site, add power distribution units, lighting towers and safety fencing - all hireable from the same warehouse near Rotherham, five minutes off the M1, with nationwide delivery across the UK.
| | Floor Space | Height |
| Unit Size: | 13ft x 6ft | 5.5ft |
Suitable For
| Outdoors on Grass |  |
| Outdoors on Hard Surface | |
Not Suitable For
| Indoors on Artificial Grass |  |
| Indoors on Hard Surface | |
| Outdoors on Concrete | |
| Outdoors on Grass / Hard Surface Mix | |
| Outdoors on Wood Chip | |
